Tan

From FenixWiki

Jump to: navigation, search


Contents

[edit] Definition

FLOAT tan ( <FLOAT angle> )

Returns the tangent of a certain angle.

This function performs a tangent calculation on a certain angle and returns a value.

[edit] Parameters

FLOAT angle - Angle, in thousandths of degrees. i.e. 75000 = 75º

[edit] Returns

FLOAT : The tangent result of the specified angle.

[edit] Notes

The angle value used in this function should be in thousandths of degrees, as most angles within Fenix are.

To read about all aspects of trigonometry, you can visit Wikipedia's Trigonometric function page.

[edit] Example

Const
    screen_width  = 320;
    screen_height = 200;
    screen_border = 15;
End

Global
    float value;
End

Process Main()
Begin

    // Modes
    set_title("Tangent Graph");
    set_mode(screen_width,screen_height);

    // X axis
    for(x=1;x<=8;x++)
        write( 0,
               screen_border+x*(screen_width-screen_border)/8+3,
               screen_height-1,
               8,
               itoa(x*360/8 )+"^" );
    end
    draw_line(1,screen_height-screen_border,screen_width,screen_height-screen_border);

    // Y axis
    write(0,screen_border-1,20,5,"1");
    write(0,screen_border-1,screen_height/2,5,"0");
    write(0,screen_border-1,screen_height-20,5,"-1");
    draw_line(screen_border,1,screen_border,screen_height-1);

    // Draw tangent
    for(angle=0;angle<360;angle++)
        value=tan(angle*1000)*(screen_height/2-20);
        put_pixel( screen_border+angle*(screen_width-screen_border)/360,
                   screen_height/2-value,
                   rgb(255,255,255) );
        // screen_height/2-value because the screen's origin (0,0) is topleft instead of downleft.
    end

    Repeat
        frame;
    Until(key(_ESC))

End

Used in example: set_title(), set_mode(), write(), draw_line(), tan(), put_pixel(), key()

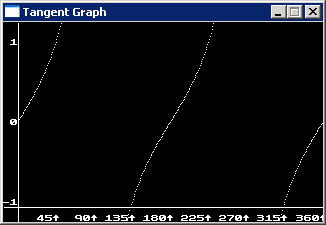

This will result in something like:

Tangent


Math Functions
Abs() • Acos() • Asin() • Atan() • Cos() • Fget_angle() • Fget_dist() • Get_distx() • Get_disty() • Pow() • Rand() • Rand_seed() • Sin() • Sqrt() • Tan() •
